Adjustable Inclined Plane Apparatus
Product Specification Sheet

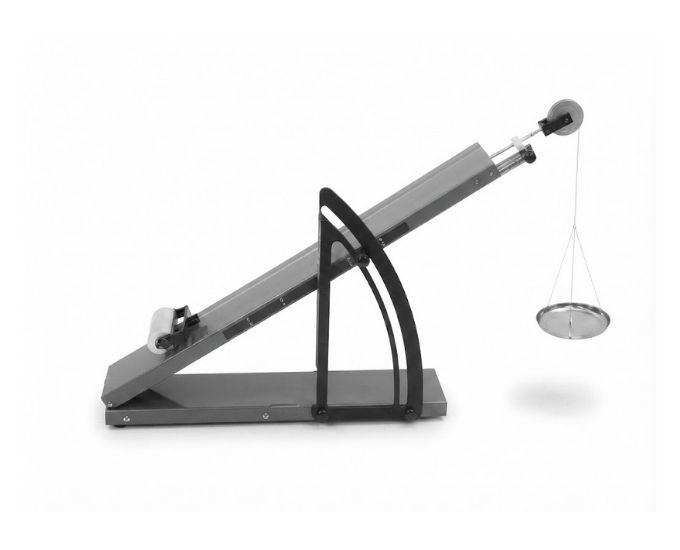

Adjustable Inclined Plane Apparatus
Model Number: MTM-99
The Adjustable Inclined Plane Apparatus from Micro Technologies is a metal laboratory setup designed for practical experiments involving friction, force, equilibrium and motion on an inclined surface. The MT-10574 features a 60 cm long metal plane, built-in length and angle scales, 0° to 45° inclination adjustment, adjustable pulley, roller, cord and weight pan.
Product Specification
The Adjustable Inclined Plane Apparatus from Micro Technologies is a robust mechanics apparatus designed for investigating the behaviour of objects and forces on an inclined surface. Its adjustable construction allows the slope of the plane to be changed systematically for comparative experiments.
The MT-10574 features a metal inclined plane approximately 60 cm long. Metal construction provides a rigid experimental surface suitable for repeated laboratory use.
A built-in angle scale enables the inclination of the plane to be measured directly. The apparatus can be adjusted through an angular range of approximately 0° to 45°, allowing experiments to be performed at different slopes.
A built-in length scale is also incorporated along the plane, providing a convenient reference for measuring position or travel distance during suitable motion investigations.
The apparatus includes an adjustable pulley that can be positioned as required for experimental setups. A cord can pass over the pulley to connect an object on the inclined plane to the supplied weight pan.
By adding suitable masses to the weight pan, the force required to balance or move an object along the inclined plane can be investigated. This arrangement supports experiments involving equilibrium, friction, force components and mechanical advantage.
A roller is also included, allowing experiments involving rolling motion and comparison with sliding behaviour.
For a body of mass m on a plane inclined at angle θ, the gravitational force component parallel to the plane is:
F = mg sin θ
and the normal reaction is:
N = mg cos θ
These relationships allow the apparatus to be used for practical verification and analysis of forces acting on objects placed on inclined surfaces.
Manufactured and supplied by Micro Technologies, the Adjustable Inclined Plane Apparatus is suitable for physics laboratories, mechanics laboratories, engineering laboratories, research facilities and other applications involving friction, force and motion investigations.
Features
- Adjustable inclined plane
- Robust metal construction
- 60 cm plane length
- Inclination adjustable from 0° to 45°
- Built-in angular scale
- Built-in length scale
- Adjustable pulley
- Roller included
- Cord supplied
- Weight pan supplied
- Suitable for friction experiments
- Supports force and equilibrium investigations
- Suitable for rolling-motion experiments
- No electrical power required
Benefits
- Allows precise variation of inclination angle
- Built-in angle scale simplifies experimental setup
- Length scale provides convenient position measurement
- Adjustable pulley supports different loading arrangements
- Weight pan enables controlled force application
- Suitable for investigating friction and equilibrium
- Roller expands the range of motion experiments
- Metal construction provides durability for repeated laboratory use
- Multiple mechanics principles can be investigated with one apparatus
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Adjustable Inclined Plane Apparatus |
| Model No. | MT-10574 |
| Construction | Metal |
| Plane Length | 60 cm |
| Inclination Range | 0° to 45° |
| Angle Scale | Built-In |
| Length Scale | Built-In |
| Pulley | Adjustable |
| Roller | Included |
| Cord | Included |
| Weight Pan | Included |
| Operation | Mechanical |
| Power Requirement | None |
| Primary Application | Friction, Force & Motion Experiments |
Supplied Components
| Component | Details |
|---|---|
| Inclined Plane | Metal, 60 cm |
| Angle Scale | 0°–45° |
| Length Scale | Built-In |
| Adjustable Pulley | Included |
| Roller | Included |
| Cord | Included |
| Weight Pan | Included |
Experimental Capabilities
| Experiment | Investigation |
|---|---|
| Inclined Motion | Motion along a sloping surface |
| Friction | Resistance to movement |
| Coefficient of Friction | Frictional relationship between surfaces |
| Equilibrium | Balance of forces |
| Resolution of Forces | Parallel and normal components |
| Rolling Motion | Motion of roller on inclined plane |
| Mechanical Advantage | Effect of inclination on required force |
| Angle Variation | Effect of slope on motion and force |
Available Model
| Model No. | Product |
|---|---|
| MT-10574 | Adjustable Inclined Plane Apparatus |
Applications
- Inclined plane experiments
- Friction investigations
- Coefficient of friction experiments
- Force measurement experiments
- Equilibrium investigations
- Resolution of forces
- Rolling-motion experiments
- Mechanical advantage studies
- Effect of inclination angle
- Linear motion investigations
- Mechanics laboratory experiments
- Dynamics laboratory demonstrations
Available Variants
Adjustable Inclined Plane Apparatus, Metal Inclined Plane Apparatus, Inclined Plane with Pulley, 0–45 Degree Inclined Plane, Friction Inclined Plane Apparatus, Force and Motion Inclined Plane, Mechanics Inclined Plane Apparatus
SKU System
MT-AIPA-10574
FAQs
What is the MT-10574 Adjustable Inclined Plane Apparatus used for?
The MT-10574 is used for experiments involving friction, force, equilibrium, rolling motion, mechanical advantage and motion on inclined surfaces.
What is the length of the inclined plane?
The metal inclined plane is approximately 60 cm long.
What is the inclination range?
The apparatus can be adjusted from approximately 0° to 45°.
Does the apparatus have an angle scale?
Yes. A built-in angular scale is provided for setting and observing the inclination angle.
Is a length scale also provided?
Yes. The apparatus incorporates a built-in length scale along the plane for suitable position and distance measurements.
Is the pulley adjustable?
Yes. An adjustable pulley is supplied to provide flexibility when arranging force and equilibrium experiments.
What accessories are supplied?
The apparatus is supplied with an adjustable pulley, roller, cord and weight pan.
Can coefficient of friction be investigated?
Yes. With an appropriate experimental setup and loads, the apparatus can be used to investigate the coefficient of friction between contacting surfaces.
Does the apparatus require electricity?
No. The MT-10574 operates entirely through mechanical principles and requires no electrical power.
Why Choose Our Products
- Manufactured and supplied by Micro Technologies
- Model MT-10574
- Durable metal construction
- 60 cm experimental plane
- 0°–45° inclination adjustment
- Built-in angle and length scales
- Adjustable pulley and roller supplied
- Suitable for multiple mechanics experiments
- Bulk, institutional, OEM and distributor supply available
Call to Action
Choose the Adjustable Inclined Plane Apparatus – MT-10574 from Micro Technologies for reliable experiments involving friction, force, equilibrium and inclined motion. Contact us for competitive pricing, institutional procurement, bulk orders, OEM requirements, distributor supply and customized quotations.
