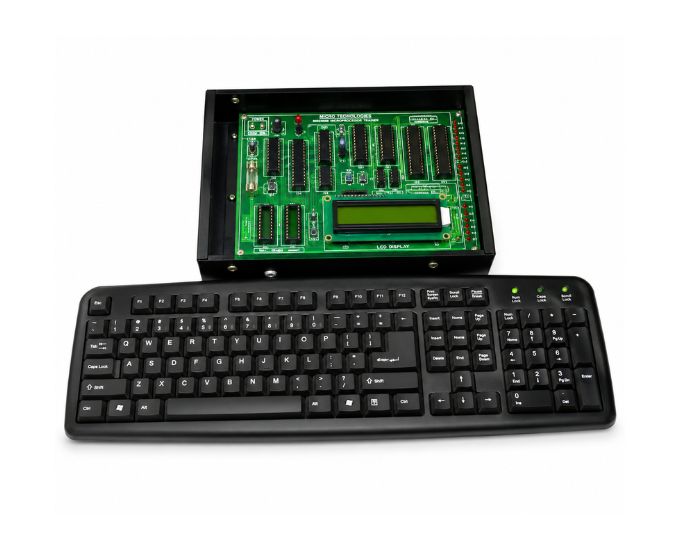

8051 Microcontroller Trainer (Assembly Language - LCD)

The 8051 Microcontroller Trainer (Assembly Language - LCD) is a professional development platform designed for learning and practicing 8051 assembly language programming. Manufactured by Micro Technologies, the trainer provides students with a complete hardware and software environment for understanding embedded systems and microcontroller applications.

Designed for engineering colleges, universities, polytechnic institutes, technical training centres, and embedded system laboratories, the trainer supports the 8031, 8051, and 8751 microcontrollers operating at 10/12MHz, enabling comprehensive programming and hardware interfacing experiments.

The trainer is equipped with 8KB onboard RAM, 64KB EPROM with monitor program, and provision for battery backup, making it suitable for developing and executing assembly language programs efficiently.

For peripheral interfacing, the trainer includes a 20×2 LCD display, IBM PC compatible keyboard, 48 I/O lines using two 8255 programmable peripheral interface ICs, three programmable timer/counters using the 8253, and dual external interrupt lines (INT0 & INT1). Communication with a computer is supported through an RS-232 serial interface using the 8251, while an additional USART interface using the 89C51/89C52 provides enhanced serial communication capability.

The system includes a powerful monitor program supporting commands such as INSERT, DELETE, BLOCK MOVE, SET/CLEAR BREAKPOINT, SINGLE STEP, EXAMINE MEMORY, EXAMINE REGISTER, EXECUTE, MODIFY, PROGRAM, DATA, and INTERNAL MEMORY operations. Programs can be uploaded and downloaded directly from a PC in Intel HEX format, simplifying software development and debugging.

Manufactured using a high-quality insulated printed circuit board with clearly printed circuit symbols, the trainer is housed in a rugged ABS plastic cabinet for reliable laboratory use and long service life.

Scope of Learning

• 8051 Assembly Language Programming
• Embedded System Development
• LCD Interfacing
• Keyboard Interfacing
• Memory Management
• Timer and Counter Programming
• Interrupt Programming
• Serial Communication
• PC Interface Programming
• Practical Microcontroller Applications

Features

• Supports 8031, 8051 & 8751 microcontrollers
• 20×2 LCD display
• IBM PC compatible keyboard
• 8KB onboard RAM
• 64KB EPROM with monitor program
• Dual 8255 programmable peripheral interfaces
• Three programmable timers/counters using 8253
• Dual external interrupts (INT0 & INT1)
• RS-232 communication using 8251
• Additional USART interface
• Intel HEX file upload/download
• High-quality insulated PCB
• Rugged ABS plastic cabinet

Benefits

• Ideal for learning 8051 assembly language
• Complete embedded development platform
• Easy program development and debugging
• Integrated LCD and keyboard interface
• Reliable serial communication
• Suitable for engineering education
• User-friendly operation
• Durable laboratory construction
• Low maintenance
• Long operational life
• Cost-effective training solution
• Industry-oriented learning platform

Technical Specifications

Items Supplied

• 8051 Microcontroller Trainer (Assembly Language - LCD)
• Instruction Manual
• Software CD/Program Files
• RS-232 Communication Cable
• Power Supply

Optional Accessories

• None

Applications

• Embedded Systems Laboratories
• Microcontroller Laboratories
• Electronics Engineering Colleges
• Universities
• Polytechnic Institutes
• Technical Training Centres
• Skill Development Centres
• Research Laboratories
• Educational Demonstrations
• Industrial Training Programs

SKU System

MT-8051LCD-001

FAQs

What is the 8051 Microcontroller Trainer (Assembly Language - LCD) used for?

It is used for learning 8051 assembly language programming, embedded system development, LCD interfacing, serial communication, timers, interrupts, and peripheral interfacing.

Which microcontrollers are supported?

The trainer supports:

• 8031
• 8051
• 8751

What display is provided?

The trainer includes a 20×2 LCD display for displaying program outputs and user interaction.

How much memory is available?

The trainer includes:

• 8KB Onboard RAM
• 64KB EPROM with Monitor Program

Which communication interface is available?

The trainer supports RS-232 communication using 8251 and an additional USART interface using 89C51/89C52.

Can programs be transferred from a computer?

Yes. Programs can be uploaded and downloaded using Intel HEX format from a PC.

Can the 8051 Microcontroller Trainer (Assembly Language - LCD) be supplied in bulk?

Yes. Micro Technologies supplies 8051 Microcontroller Trainer (Assembly Language - LCD) systems to engineering colleges, universities, government institutions, technical training centres, OEM projects, distributors, and bulk procurement.
