4-Bit Binary Adder and Subtractor Trainer
Product Specification Sheet
4-Bit Binary Adder and Subtractor Trainer

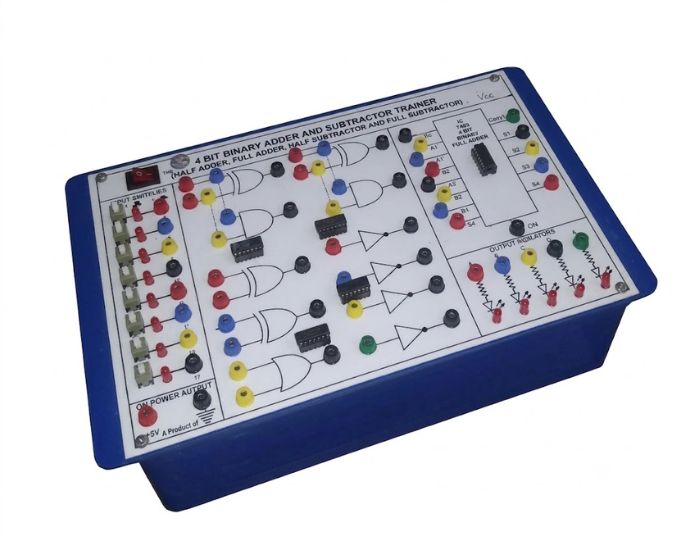

Model Number: MT-E008
The 4-Bit Binary Adder and Subtractor Trainer is a professional laboratory training system designed for studying binary arithmetic operations and combinational logic circuits. Manufactured by Micro Technologies, this trainer enables practical experiments on half adders, full adders, half subtractors, full subtractors, and 4-bit binary arithmetic using IC 7483, making it ideal for engineering colleges, universities, polytechnic institutes, technical training centers, and digital electronics laboratories.
Product Specification
The 4-Bit Binary Adder and Subtractor Trainer is specially designed to provide students with practical knowledge of binary arithmetic circuits through hands-on laboratory experimentation. Manufactured by Micro Technologies, this trainer enables learners to understand the principles of binary addition and subtraction used in digital computers, microprocessors, embedded systems, arithmetic logic units (ALUs), digital calculators, and communication systems.
The trainer allows students to perform practical experiments on Half Adder using TTL Gates, Full Adder using TTL Gates, Half Subtractor using TTL Gates, Full Subtractor using TTL Gates, 4-Bit Binary Adder using IC 7483, and 4-Bit Binary Parallel Adder using IC 7483. These experiments help learners understand binary arithmetic operations, carry generation, borrow generation, overflow conditions, and combinational logic design.
The trainer incorporates the industry-standard IC 7483 4-Bit Binary Adder, along with onboard AND, OR, and NOT logic gate circuits required for arithmetic implementation. All circuits are permanently mounted on the trainer panel with clearly printed circuit diagrams for simplified understanding and experimentation.
Eight independent TTL logic input switches allow users to apply HIGH and LOW logic levels during experiments. Each input is provided with an LED indicator for clear visualization of logic status. Five independent buffered logic output indicators display HIGH and LOW output conditions, enabling students to observe arithmetic results, carry outputs, and borrow outputs accurately.
The trainer operates using a regulated +5 V DC, 150 mA power supply, ensuring reliable operation of all onboard digital integrated circuits. Carefully selected electronic components provide stable performance, accurate arithmetic operation, and long service life.
The front panel is manufactured using a premium insulated printed circuit board with permanently printed circuit diagrams and logic symbols for easy identification of arithmetic circuits and experimental terminals. Color-coded 2 mm safety sockets simplify laboratory wiring while minimizing connection errors.
The trainer is enclosed inside a rugged ABS plastic/wooden cabinet designed for continuous educational use. Compact tabletop construction makes it suitable for classroom demonstrations, laboratory practical sessions, and digital electronics training.
The 4-Bit Binary Adder and Subtractor Trainer is extensively used in engineering colleges, universities, diploma institutes, polytechnic colleges, industrial training institutes (ITI), vocational education centers, digital electronics laboratories, embedded systems laboratories, computer engineering laboratories, and research institutions.
Every 4-Bit Binary Adder and Subtractor Trainer manufactured by Micro Technologies undergoes comprehensive quality inspection and functional testing to ensure operational reliability, safety, and long service life.
Features
- Study of Half Adder using TTL Gates
- Study of Full Adder using TTL Gates
- Study of Half Subtractor using TTL Gates
- Study of Full Subtractor using TTL Gates
- Study of 4-Bit Binary Adder
- Study of 4-Bit Binary Parallel Adder
- Built-in IC 7483 4-Bit Binary Adder
- Built-in AND, OR and NOT gate circuits
- Eight independent TTL logic inputs
- LED logic input indicators
- Five buffered logic output indicators
- Binary arithmetic experiments
- Regulated +5 V DC power supply
- High-quality insulated PCB
- Printed circuit diagrams
- Color-coded 2 mm safety sockets
- Rugged ABS plastic/wooden cabinet
- Compact tabletop design
- Ready-to-use laboratory trainer
- Instruction manual included
Benefits
- Demonstrates binary addition and subtraction clearly
- Enhances understanding of combinational logic circuits
- Supports digital electronics laboratory education
- Simplifies arithmetic logic experiments
- Easy laboratory setup
- Safe low-voltage operation
- Improves understanding of digital arithmetic operations
- Strengthens knowledge of binary number systems
- Durable educational equipment
- Suitable for repeated classroom demonstrations
- Cost-effective engineering trainer
- Builds a strong foundation in digital circuit design
Product Specifications
| Specification | Details |
|---|---|
| Product Name | 4-Bit Binary Adder and Subtractor Trainer |
| Experiments | Half Adder, Full Adder, Half Subtractor, Full Subtractor, 4-Bit Binary Adder |
| Arithmetic IC | IC 7483 |
| Logic Gates | AND, OR & NOT Gates |
| DC Power Supply | +5 V DC, 150 mA |
| Input Supply | 230 V AC ±10%, 50 Hz |
| Logic Inputs | Eight Independent TTL Logic Inputs |
| Input Indicators | LED Logic Status Indicators |
| Logic Indicators | Five Buffered HIGH/LOW Logic Indicators |
| Connection Type | 2 mm Color-Coded Safety Sockets |
| Circuit Board | High-Quality Insulated PCB |
| Cabinet | Heavy-Duty ABS Plastic/Wooden Cabinet |
| Trainer Size | Approximately 12" × 8" |
Applications
- Engineering Colleges
- Polytechnic Institutes
- Universities
- Digital Electronics Laboratories
- Computer Engineering Laboratories
- Embedded Systems Laboratories
- Microprocessor Laboratories
- Arithmetic Logic Laboratories
- Industrial Training Institutes (ITI)
- Technical Training Centers
- Vocational Education Centers
- Research Laboratories
Optional Accessories
- Digital Multimeter
- Logic Probe
- Logic Pulser
- Oscilloscope
- Function Generator
- Patch Cords (2 mm)
- Breadboard Trainer Kit
- Electronics Tool Kit
- Laboratory Workstation
- User Instruction Manual
SKU System
MT-BAS-001
FAQs
What is the 4-Bit Binary Adder and Subtractor Trainer used for?
It is used to study binary arithmetic operations, including addition and subtraction, using TTL logic gates and IC 7483.
Which experiments can be performed?
Students can perform:
- Half Adder
- Full Adder
- Half Subtractor
- Full Subtractor
- 4-Bit Binary Adder
- 4-Bit Binary Parallel Adder
Which IC is provided on the trainer?
The trainer incorporates the IC 7483 4-Bit Binary Adder.
Which logic gates are available?
The trainer includes onboard:
- AND Gates
- OR Gates
- NOT Gates
How many logic inputs are available?
The trainer provides eight independent TTL logic input switches, each with LED indication.
What power supply is included?
The trainer operates on a regulated +5 V DC, 150 mA power supply.
How are experimental connections made?
All experimental connections are made through 2 mm color-coded safety sockets, ensuring secure and reliable laboratory operation.
Can the 4-Bit Binary Adder and Subtractor Trainer be supplied in bulk?
Yes. Micro Technologies supplies 4-Bit Binary Adder and Subtractor Trainers for engineering colleges, universities, government institutions, OEM projects, distributors, laboratory installations, and bulk procurement.
