4, 8 and 16 Bit Comparator Trainer
Product Specification Sheet

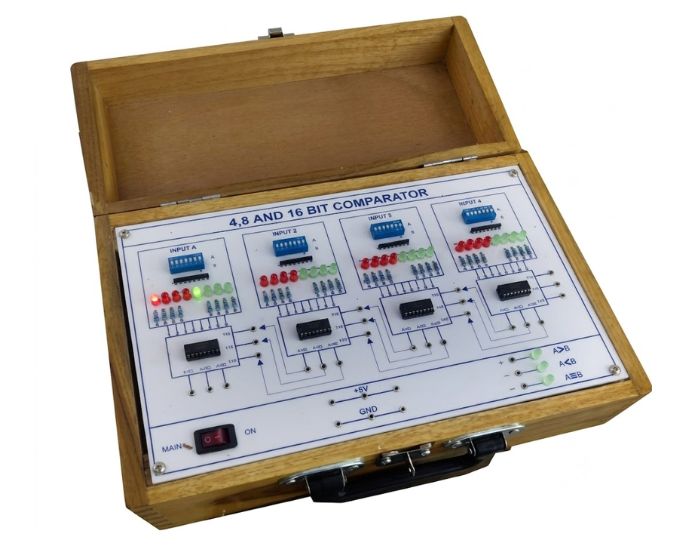

4, 8 and 16 Bit Comparator Trainer
Model Number: MT-E104
The 4, 8 and 16 Bit Comparator Trainer is a professional laboratory training system designed for studying digital magnitude comparison using 4-bit, 8-bit, and 16-bit comparator circuits. Manufactured by Micro Technologies, this trainer incorporates multiple IC 7485 comparator circuits, logic input switches, output indicators, and practical comparison experiments, making it ideal for engineering colleges, universities, polytechnic institutes, technical training centers, and digital electronics laboratories.
Product Specification
The 4, 8 and 16 Bit Comparator Trainer is specially designed to provide students with practical knowledge of digital magnitude comparison through hands-on laboratory experimentation. Manufactured by Micro Technologies, this trainer enables learners to understand how digital comparator circuits determine whether one binary number is greater than, less than, or equal to another binary number. Comparator circuits are widely used in digital computers, embedded systems, control systems, microprocessors, communication equipment, and industrial automation.
The trainer allows students to study the operation of 4-bit, 8-bit, and 16-bit digital comparators using cascading techniques. Through practical experimentation, learners can understand binary number comparison, cascading of comparator ICs, comparator outputs, digital decision-making circuits, and combinational logic implementation.
The trainer incorporates four IC 7485 Magnitude Comparator integrated circuits mounted on the board, allowing implementation of multiple comparison configurations. Students can verify comparison outputs for different binary inputs and study the operation of cascaded comparator circuits for higher-bit comparisons.
Thirty-two independent TTL logic input switches enable users to apply HIGH and LOW logic levels to the comparator circuits. Each input is provided with an LED indicator for easy observation of logic status. Three independent buffered logic output indicators display the comparison results corresponding to Greater Than (A>B), Equal To (A=B), and Less Than (A<B) conditions.
The trainer operates using a regulated +5 V DC, 150 mA power supply, ensuring reliable operation of all onboard digital integrated circuits. High-quality electronic components provide stable performance, accurate comparison results, and long operational life.
The front panel is manufactured using a premium insulated printed circuit board with permanently printed circuit diagrams, truth tables, and logic symbols for easy identification of comparator circuits and experimental terminals. Color-coded 2 mm safety sockets simplify laboratory wiring while minimizing connection errors.
The trainer is housed inside a rugged ABS plastic cabinet designed for continuous educational use. Its compact tabletop construction makes it ideal for classroom demonstrations, laboratory practical sessions, and digital electronics training.
The 4, 8 and 16 Bit Comparator Trainer is extensively used in engineering colleges, universities, diploma institutes, polytechnic colleges, industrial training institutes (ITI), vocational education centers, digital electronics laboratories, computer architecture laboratories, embedded systems laboratories, and research institutions.
Every 4, 8 and 16 Bit Comparator Trainer manufactured by Micro Technologies undergoes comprehensive quality inspection and functional testing to ensure operational reliability, safety, and long service life.
Features
- Study of 4-bit comparator
- Study of 8-bit comparator
- Study of 16-bit comparator
- Built-in IC 7485 Magnitude Comparator circuits
- Four comparator ICs mounted onboard
- Binary magnitude comparison experiments
- Comparator cascading experiments
- Thirty-two independent TTL logic inputs
- LED logic input indicators
- Three buffered logic output indicators
- Greater Than, Equal To, and Less Than outputs
- Regulated +5 V DC power supply
- High-quality insulated PCB
- Printed circuit diagrams and truth tables
- Color-coded 2 mm safety sockets
- Rugged ABS plastic cabinet
- Compact tabletop design
- Ready-to-use laboratory trainer
- Reliable experimental performance
- Instruction manual included
Benefits
- Demonstrates binary comparison clearly
- Enhances understanding of comparator circuits
- Supports digital electronics laboratory education
- Simplifies combinational logic experiments
- Easy laboratory setup
- Safe low-voltage operation
- Improves understanding of cascading comparator ICs
- Provides practical digital system knowledge
- Durable educational equipment
- Suitable for repeated classroom demonstrations
- Cost-effective engineering trainer
- Strengthens practical digital electronics skills
Product Specifications
| Specification | Details |
|---|---|
| Product Name | 4, 8 and 16 Bit Comparator Trainer |
| Experiments | 4, 8 & 16 Bit Magnitude Comparison |
| Comparator IC | IC 7485 Magnitude Comparator |
| Number of Comparator ICs | Four |
| DC Power Supply | +5 V DC, 150 mA |
| Input Supply | 230 V AC ±10%, 50 Hz |
| Logic Inputs | Thirty-Two Independent TTL Logic Inputs |
| Input Indicators | LED Logic Status Indicators |
| Logic Indicators | Three Buffered Comparator Output Indicators |
| Comparator Outputs | A>B, A=B, A<B |
| Connection Type | 2 mm Color-Coded Safety Sockets |
| Circuit Board | High-Quality Insulated PCB |
| Cabinet | Heavy-Duty ABS Plastic |
| Trainer Size | Approximately 12" × 8" |
Applications
- Engineering Colleges
- Polytechnic Institutes
- Universities
- Digital Electronics Laboratories
- Computer Architecture Laboratories
- Embedded Systems Laboratories
- Microprocessor Laboratories
- Electronics Laboratories
- Diploma Colleges
- Industrial Training Institutes (ITI)
- Technical Training Centers
- Research Laboratories
Optional Accessories
- Digital Multimeter
- Logic Probe
- Logic Pulser
- Oscilloscope
- Function Generator
- Patch Cords (2 mm)
- Breadboard Trainer Kit
- Electronics Tool Kit
- Laboratory Workstation
- User Instruction Manual
SKU System
MT-CMP-4816-001
FAQs
What is the 4, 8 and 16 Bit Comparator Trainer used for?
It is used to study binary magnitude comparison using 4-bit, 8-bit, and 16-bit comparator circuits.
Which IC is provided on the trainer?
The trainer incorporates four IC 7485 Magnitude Comparator integrated circuits.
Which experiments can be performed?
Students can study:
- 4-Bit Comparator
- 8-Bit Comparator
- 16-Bit Comparator
- Comparator Cascading
- Binary Number Comparison
- Magnitude Comparator Operation
How many logic inputs are available?
The trainer provides 32 independent TTL logic input switches, each with LED indication.
What comparison outputs are available?
The trainer provides three comparator outputs:
- A > B
- A = B
- A < B
What power supply is included?
The trainer operates on a regulated +5 V DC, 150 mA power supply.
How are experimental connections made?
All experimental connections are made through 2 mm color-coded safety sockets, ensuring secure and reliable laboratory operation.
Can the 4, 8 and 16 Bit Comparator Trainer be supplied in bulk?
Yes. Micro Technologies supplies Comparator Trainers for engineering colleges, universities, government institutions, OEM projects, distributors, laboratory installations, and bulk procurement.
Why Choose Our Products
- Premium-quality digital electronics trainer kits
- Complete comparator experiments
- Built-in IC 7485 comparator circuits
- Supports 4-bit, 8-bit, and 16-bit comparison
- High-quality insulated PCB construction
- Rugged ABS cabinet
- Reliable laboratory performance
- OEM and institutional supply available
- Competitive B2B pricing
- Strict quality inspection
- Reliable technical support
- Excellent after-sales service
Call to Action
Enhance your digital electronics laboratory with the 4, 8 and 16 Bit Comparator Trainer from Micro Technologies. Contact us today for pricing, institutional procurement, OEM requirements, government tenders, distributor inquiries, and bulk order quotations.
