24-Pulley Longitudinal & Transverse Wave Motion Apparatus – Plastic
Product Specification Sheet
24-Pulley Longitudinal & Transverse Wave Motion Apparatus – Plastic
Model Number: MT-1179
The 24-Pulley Longitudinal & Transverse Wave Motion Apparatus – Plastic from Micro Technologies is a mechanical laboratory apparatus designed for demonstrating longitudinal waves, transverse waves, wave propagation, oscillation, vibration, compression, rarefaction, crests, and troughs. The MT-1179 features a 24-pulley plastic wave-motion arrangement with a manual operating mechanism for clear visualization and comparison of different mechanical wave phenomena.
Product Specification
The 24-Pulley Longitudinal & Transverse Wave Motion Apparatus – Plastic from Micro Technologies is designed for practical laboratory demonstrations and investigations involving mechanical wave motion. Its multi-element configuration allows the progression of a disturbance through a mechanical system to be observed directly.

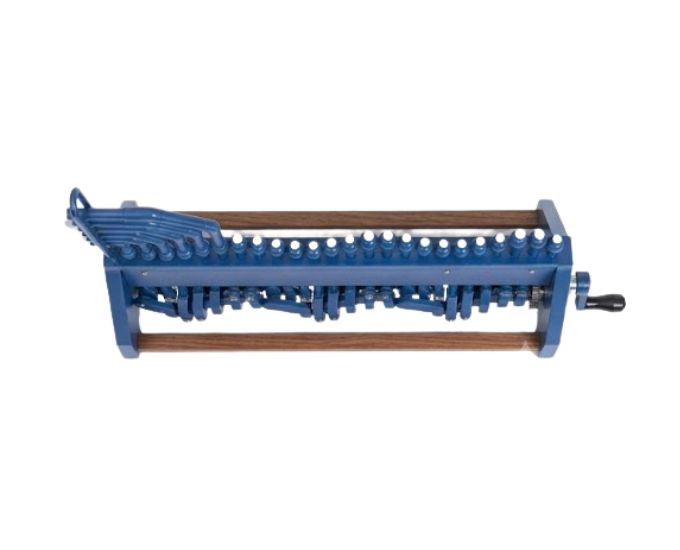

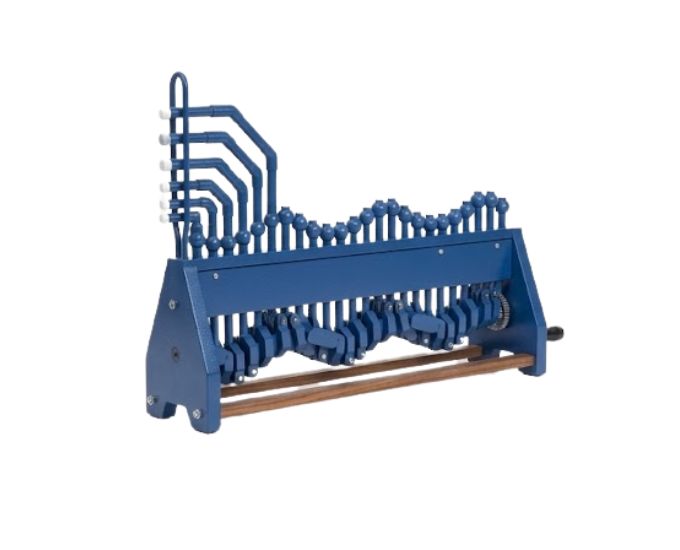

The MT-1179 incorporates a 24-pulley arrangement with plastic wave-motion components supported on a stable frame. The increased number of interconnected elements provides an extended experimental arrangement for observing wave profiles and progressive motion.
The apparatus is designed to demonstrate both longitudinal and transverse mechanical waves. This allows different types of wave motion to be investigated and compared using a single laboratory setup.
During longitudinal wave demonstrations, the movement of the elements can be used to represent disturbances occurring parallel to the general direction of wave propagation. This provides a practical representation of concepts associated with compression and rarefaction.
For transverse wave demonstrations, the elements move perpendicular to the direction in which the wave progresses. This makes it possible to observe characteristic wave features such as crests, troughs, amplitude, and wavelength.
The 24-pulley arrangement provides multiple observation points along the wave path, making the development and propagation of the mechanical disturbance clearly visible. The apparatus can therefore support investigations involving wave propagation, periodic motion, oscillation, vibration, wavelength, amplitude, and frequency.
A manual operating arrangement allows the motion to be initiated and controlled according to experimental requirements. The open construction provides convenient visibility of the moving elements throughout the experiment.
Manufactured and supplied by Micro Technologies, the MT-1179 is suitable for physics laboratories, wave laboratories, mechanics laboratories, vibration laboratories, research facilities, and other environments conducting mechanical wave-motion investigations.
Features
- 24-pulley wave-motion arrangement
- Plastic wave-motion components
- Demonstrates longitudinal waves
- Demonstrates transverse waves
- Multiple interconnected oscillating elements
- Manual operating mechanism
- Stable supporting structure
- Visible wave propagation
- Demonstrates compression and rarefaction
- Demonstrates crests and troughs
- Suitable for wavelength and amplitude studies
- Reusable laboratory apparatus
Benefits
- Demonstrates longitudinal and transverse waves with one apparatus
- 24-pulley arrangement provides an extended wave demonstration
- Makes mechanical wave propagation directly observable
- Helps compare different types of mechanical waves
- Useful for demonstrating compression and rarefaction
- Clearly illustrates crests and troughs in transverse waves
- Supports oscillation and vibration investigations
- Manual operation provides convenient experimental control
Product Specifications
| Specification | Details |
|---|---|
| Product Name | 24-Pulley Longitudinal & Transverse Wave Motion Apparatus – Plastic |
| Model No. | MT-1179 |
| Product Type | Mechanical Wave Motion Apparatus |
| Number of Pulleys | 24 |
| Construction | Plastic |
| Wave Types | Longitudinal & Transverse |
| Operating Arrangement | Manual |
| Motion Type | Mechanical / Oscillatory |
| Wave Demonstration | Progressive Wave Motion |
| Supporting Structure | Provided |
| Primary Application | Wave & Vibration Experiments |
Available Model
| Model No. | Product |
|---|---|
| MT-1179 | 24-Pulley Longitudinal & Transverse Wave Motion Apparatus – Plastic |
Applications
- Longitudinal wave experiments
- Transverse wave experiments
- Mechanical wave propagation
- Compression and rarefaction demonstrations
- Crest and trough demonstrations
- Wavelength investigations
- Amplitude studies
- Frequency investigations
- Periodic motion experiments
- Mechanical oscillation studies
- Vibration experiments
Available Variants
24-Pulley Longitudinal & Transverse Wave Motion Apparatus, 24-Pulley Wave Machine, Plastic Wave Motion Apparatus, Longitudinal and Transverse Wave Machine, Laboratory Wave Motion Apparatus, Mechanical Wave Demonstrator, Physics Wave Motion Apparatus
SKU System
MT-24PLTW-1179
FAQs
What is the MT-1179 Wave Motion Apparatus used for?
The MT-1179 is designed for experiments involving longitudinal waves, transverse waves, mechanical wave propagation, oscillation, vibration, wavelength, amplitude, compression, and rarefaction.
How many pulleys are provided in the MT-1179?
The apparatus features a 24-pulley arrangement, providing multiple interconnected elements for observing progressive wave motion.
What is the model number of this apparatus?
The Micro Technologies model number is MT-1179.
Can both longitudinal and transverse waves be demonstrated?
Yes. The MT-1179 is specifically designed for demonstrating and comparing both longitudinal and transverse mechanical wave motion.
What is the construction of the MT-1179?
The wave-motion arrangement uses plastic components supported by a laboratory frame.
Can compression and rarefaction be demonstrated?
Yes. The apparatus can help demonstrate compression and rarefaction associated with longitudinal wave motion.
Can crests and troughs be observed?
Yes. During transverse wave demonstrations, characteristic features such as crests and troughs can be clearly represented.
Is the MT-1179 manually operated?
Yes. A manual operating mechanism is provided for initiating and controlling the wave-motion demonstration.
Why Choose Our Products
- Manufactured and supplied by Micro Technologies
- Model MT-1179
- 24-pulley experimental configuration
- Demonstrates longitudinal and transverse waves
- Practical plastic construction
- Suitable for repeated wave-motion investigations
- Bulk, OEM, institutional, and distributor supply available
Call to Action
Choose the 24-Pulley Longitudinal & Transverse Wave Motion Apparatus – Plastic, MT-1179 from Micro Technologies for comprehensive mechanical wave, oscillation, and vibration experiments. Share your quantity or laboratory requirement with us for bulk pricing, institutional procurement, OEM supply, distributor orders, and customized quotations.
