18 Pulley Longitudinal & Transverse Wave Motion Apparatus – Metal
Product Specification Sheet
18 Pulley Longitudinal & Transverse Wave Motion Apparatus – Metal
Model Number: MT-1177
The 18 Pulley Longitudinal & Transverse Wave Motion Apparatus – Metal from Micro Technologies is a robust mechanical laboratory apparatus designed to demonstrate longitudinal waves, transverse waves, oscillations, wave propagation, vibration, and related wave phenomena. The MT-1177 features an 18-pulley metal arrangement mounted on a stable frame with a manual operating mechanism for clear visualization of different forms of mechanical wave motion.
Product Specification
The 18 Pulley Longitudinal & Transverse Wave Motion Apparatus – Metal from Micro Technologies is a versatile laboratory system designed for practical investigations of mechanical waves. Unlike configurations intended primarily for one type of wave, the MT-1177 provides an arrangement for demonstrating both longitudinal and transverse wave behavior.
The MT-1177 incorporates an 18-pulley mechanical system mounted on a rigid supporting structure. Its metal construction provides a robust laboratory configuration suitable for repeated wave-motion demonstrations and experimental use.
The apparatus allows disturbances to be transmitted progressively through interconnected moving elements. This provides a visible representation of how mechanical energy and disturbances propagate through a system without requiring the individual elements to travel continuously with the wave.
For longitudinal wave demonstrations, the motion can be used to illustrate disturbances occurring generally parallel to the direction of wave propagation. This arrangement helps demonstrate concepts associated with compression, rarefaction, and progressive mechanical disturbances.
The apparatus also supports transverse wave demonstrations, where the displacement of the oscillating elements occurs perpendicular to the general direction of wave propagation. The resulting wave profile provides a clear representation of crests, troughs, amplitude, and wavelength.

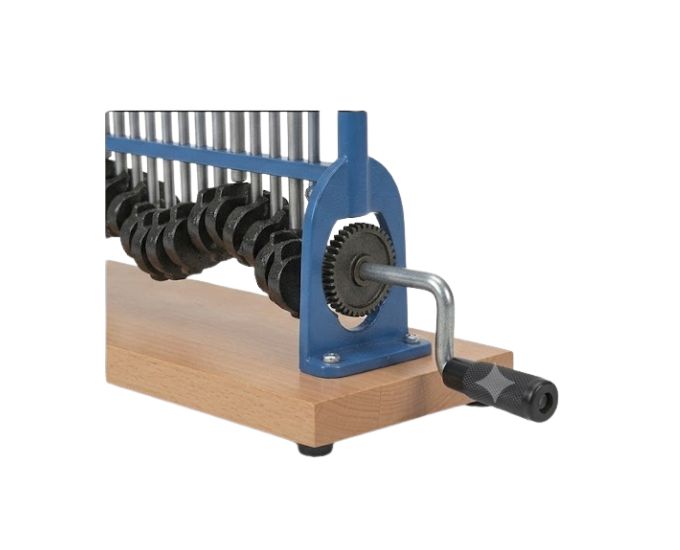

The manual driving arrangement allows the operator to initiate and control the movement of the system. Different motion patterns can therefore be observed while investigating wave propagation, oscillation, wavelength, amplitude, frequency, and mechanical vibration.

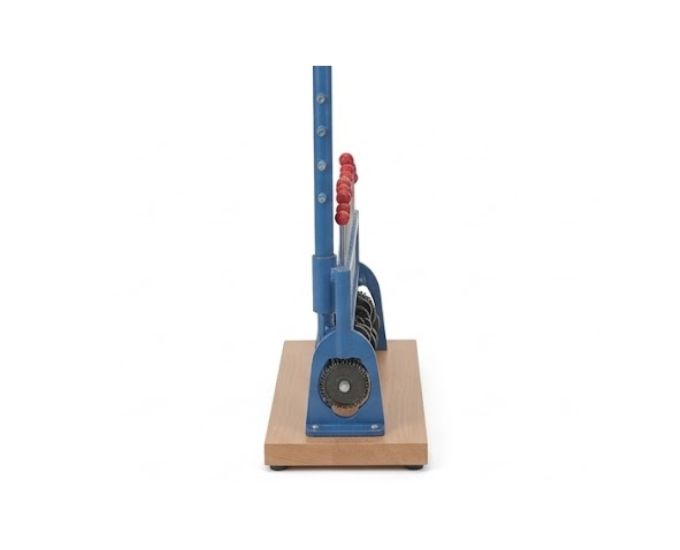

The rigid metal frame maintains the individual elements in an organized configuration during operation. Its open construction also provides clear visibility of the moving components, making the progression and shape of mechanical waves easier to observe.
Manufactured and supplied by Micro Technologies, the MT-1177 is suitable for physics laboratories, mechanics laboratories, wave and vibration laboratories, research facilities, testing laboratories, and other environments requiring practical mechanical wave demonstrations.
Features
- 18-pulley wave-motion configuration
- Demonstrates longitudinal waves
- Demonstrates transverse waves
- Robust metal construction
- Multiple interconnected oscillating elements
- Manual operating mechanism
- Stable supporting frame
- Clear visualization of wave propagation
- Suitable for vibration and oscillation studies
- Useful for wavelength and amplitude investigations
- Reusable laboratory apparatus
Benefits
- Demonstrates two major types of mechanical waves with one apparatus
- Provides visible representation of wave propagation
- Helps compare longitudinal and transverse wave behavior
- Metal construction provides a robust laboratory setup
- Useful for demonstrating crests and troughs
- Supports compression and rarefaction concepts
- Manual operation provides convenient experimental control
- Suitable for repeated wave and vibration investigations
Product Specifications
| Specification | Details |
|---|---|
| Product Name | 18 Pulley Longitudinal & Transverse Wave Motion Apparatus – Metal |
| Model No. | MT-1177 |
| Product Type | Mechanical Wave Motion Apparatus |
| Number of Pulleys | 18 |
| Construction | Metal |
| Wave Types | Longitudinal & Transverse |
| Operating Arrangement | Manual |
| Mounting | Rigid Supporting Frame |
| Motion | Mechanical / Oscillatory |
| Wave Demonstration | Progressive Wave Motion |
| Primary Application | Wave & Vibration Experiments |
Available Model
| Model No. | Product |
|---|---|
| MT-1177 | 18 Pulley Longitudinal & Transverse Wave Motion Apparatus – Metal |
Applications
- Longitudinal wave experiments
- Transverse wave experiments
- Mechanical wave propagation
- Compression and rarefaction demonstrations
- Crest and trough demonstrations
- Wavelength investigations
- Amplitude studies
- Frequency investigations
- Oscillation experiments
- Mechanical vibration studies
- Comparative wave-motion experiments
Available Variants
18 Pulley Longitudinal & Transverse Wave Motion Apparatus, Metal Wave Motion Apparatus, Longitudinal and Transverse Wave Machine, 18 Pulley Wave Machine, Mechanical Wave Demonstrator, Laboratory Wave Motion Apparatus, Physics Wave Motion Machine
SKU System
MT-18PLTW-1177
FAQs
What is the MT-1177 Wave Motion Apparatus used for?
The MT-1177 is designed for demonstrating longitudinal waves, transverse waves, mechanical wave propagation, oscillations, vibration, wavelength, amplitude, and related wave phenomena.
How many pulleys are provided in the MT-1177?
The apparatus features an 18-pulley mechanical arrangement for practical wave-motion demonstrations.
What is the model number of this Wave Motion Apparatus?
The Micro Technologies model number is MT-1177.
Can both longitudinal and transverse waves be demonstrated?
Yes. The MT-1177 is specifically configured to support demonstrations of both longitudinal and transverse mechanical wave motion.
What is the construction of the MT-1177?
The apparatus features a metal construction with a rigid supporting frame, providing stability during repeated laboratory experiments.
Can crests and troughs be demonstrated?
Yes. During transverse wave demonstrations, the apparatus can be used to illustrate crests, troughs, wavelength, and amplitude.
Can compression and rarefaction be studied?
Yes. During suitable longitudinal wave demonstrations, the apparatus can help illustrate the concepts of compression and rarefaction.
Why Choose Our Products
- Manufactured and supplied by Micro Technologies
- Model MT-1177
- 18-pulley configuration
- Demonstrates both longitudinal and transverse waves
- Robust metal construction
- Suitable for repeated laboratory use
- Bulk, OEM, institutional, and distributor supply available
Call to Action
Equip your laboratory with the 18 Pulley Longitudinal & Transverse Wave Motion Apparatus – Metal, MT-1177 from Micro Technologies for comprehensive mechanical wave and vibration investigations. Contact us for bulk pricing, institutional procurement, OEM requirements, distributor supply, and customized quotations.
