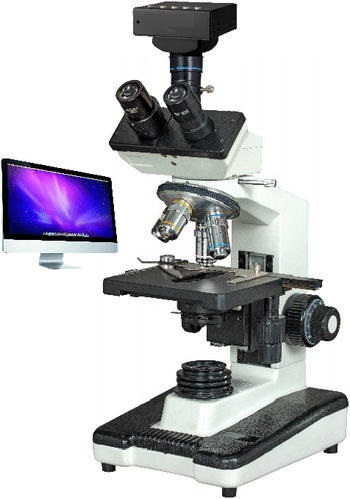

Photographic Microscope manufacturer in india

MODAL NO: MTMI 012

QTY



Description


Brand                                                                         Micro Technologies
Stand Rigid & Heavy Single Mold Aluminum Die-cast Stand
Observation Head 45 Degree And Rotatable In 360 Degree Lockable at Any Angle
Eyepiece Extra Wide Field HKW 10x/FOV 18 mm (PAIRED) A.R. Coated Eyepiece
Nosepiece Quadruple/quintuple Ball Bearing Nosepiece With Positive Click Stop & Rubber Grip
Objectives Achromatic objectives 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65(SL) and 100x/NA 1.25(SL) Oil imm
Double Plated Rectangular Stage Size 120 X 140 mm Having Low Positioned Co-axial Controls
Tension Control Ring Enable You To Adjust Tension On Coarse Focusing Knobs
Illumination Built-in Base Illumination With 6v-20w Halogen Lamp



Incorporates all the features of an international microscopes for professionals. Ideally recommended for routine as well as research work. High resolution Digital CCD camera with adopter & 16" coloured monitor.We are suppliers of CCTV Microscopes.

Condenser :


  • Focusable Abbe two lens type condenser NA 1.25 fitted with iris diaphragm and swing out filter holder with blue filter moving up and down through rack and pinion mechanism.


Description

Brand                                                                         Micro Technologies
Stand Rigid & Heavy Single Mold Aluminum Die-cast Stand
Observation Head 45 Degree And Rotatable In 360 Degree Lockable at Any Angle
Eyepiece Extra Wide Field HKW 10x/FOV 18 mm (PAIRED) A.R. Coated Eyepiece
Nosepiece Quadruple/quintuple Ball Bearing Nosepiece With Positive Click Stop & Rubber Grip
Objectives Achromatic objectives 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65(SL) and 100x/NA 1.25(SL) Oil imm
Double Plated Rectangular Stage Size 120 X 140 mm Having Low Positioned Co-axial Controls
Tension Control Ring Enable You To Adjust Tension On Coarse Focusing Knobs
Illumination Built-in Base Illumination With 6v-20w Halogen Lamp


Incorporates all the features of an international microscopes for professionals. Ideally recommended for routine as well as research work. High resolution Digital CCD camera with adopter & 16" coloured monitor.We are suppliers of CCTV Microscopes.

Condenser :

  • Focusable Abbe two lens type condenser NA 1.25 fitted with iris diaphragm and swing out filter holder with blue filter moving up and down through rack and pinion mechanism.

Description

Brand                                                                         Micro Technologies
Stand Rigid & Heavy Single Mold Aluminum Die-cast Stand
Observation Head 45 Degree And Rotatable In 360 Degree Lockable at Any Angle
Eyepiece Extra Wide Field HKW 10x/FOV 18 mm (PAIRED) A.R. Coated Eyepiece
Nosepiece Quadruple/quintuple Ball Bearing Nosepiece With Positive Click Stop & Rubber Grip
Objectives Achromatic objectives 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65(SL) and 100x/NA 1.25(SL) Oil imm
Double Plated Rectangular Stage Size 120 X 140 mm Having Low Positioned Co-axial Controls
Tension Control Ring Enable You To Adjust Tension On Coarse Focusing Knobs
Illumination Built-in Base Illumination With 6v-20w Halogen Lamp


Incorporates all the features of an international microscopes for professionals. Ideally recommended for routine as well as research work. High resolution Digital CCD camera with adopter & 16" coloured monitor.We are suppliers of CCTV Microscopes.

Condenser :

  • Focusable Abbe two lens type condenser NA 1.25 fitted with iris diaphragm and swing out filter holder with blue filter moving up and down through rack and pinion mechanism.
